17 Liter UNI Left Rotation (CCW) Gear Pump

17-27-34 uni-t1-akuple-disli-sol-last
17-27-34litre-uni-tip-akuple-dişli-pompa-3
17-27-34litre-uni-tip-akuple-dişli-pompa-2
17-27-34litre-uni-tip-akuple-dişli-pompa

Technical Details

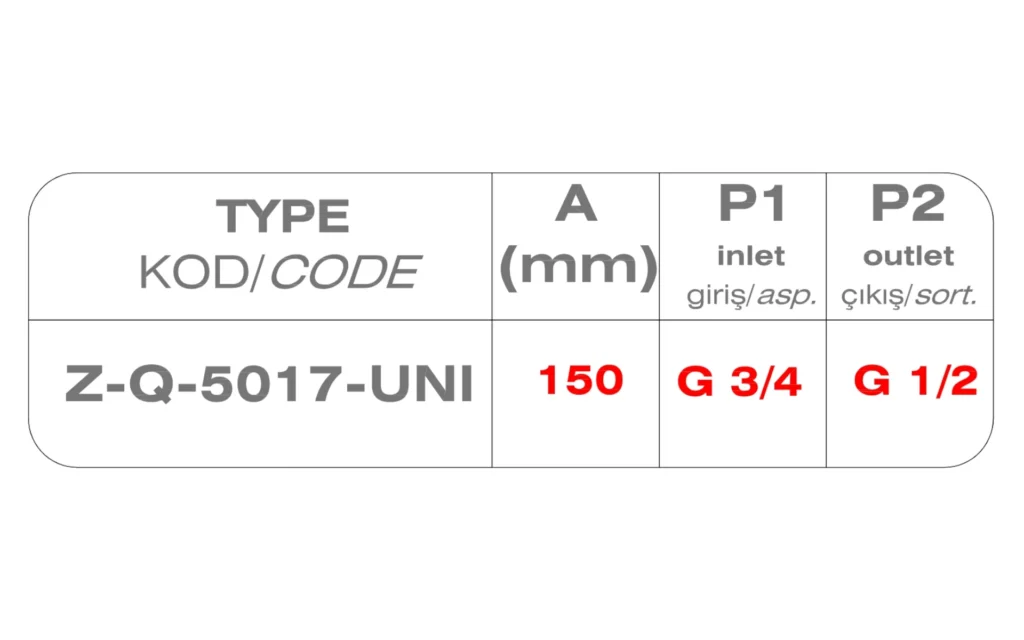

Product CodeZ-Q-5017-UNI-L
Displacement17 Liters
Continuous Operating Pressure305 Bar (Max)
Peak Pressure325 Bar (Max)
Max. Continuous Speed (Rpm)2200 Rpm.
Min. Intermittent Speed (Rpm)350 Rpm.
Weight9.20 Kg
Working Temperature-15°C / +100°C
Direction Of RotationLeft
